Water beaded tight across the hood of a black car, each bead holding a point of white light, the windscreen and the studio behind it falling dark.

Ceramic gloss · paint protection film: Fusion

Clear gloss film with the water-repellent layer in its own top coat, for the buyer weighing film plus a separate coating.

What is Fusion?

Fusion is ARK PPF’s ceramic gloss paint protection film: an aliphatic TPU film with a ceramic-infused hydrophobic self-healing coat. It takes chips and scuffs like the other clear films and beads water without a separate coating over it. It carries the ARK warranty, which covers the labour on a covered claim and transfers to the next owner.

You were going to pay for film, and then for a ceramic coating on top of it. This film puts the water-repellent layer in its own top coat, so the beading is part of the film rather than a coating applied over it. Underneath it is still clear film: it takes the chips, and the paint keeps its colour.

Water on the top coat.

A low-energy surface pulls water into beads instead of letting it sit flat, so it rolls off carrying dirt with it. The effect fades with use and washing, and it comes back with maintenance.

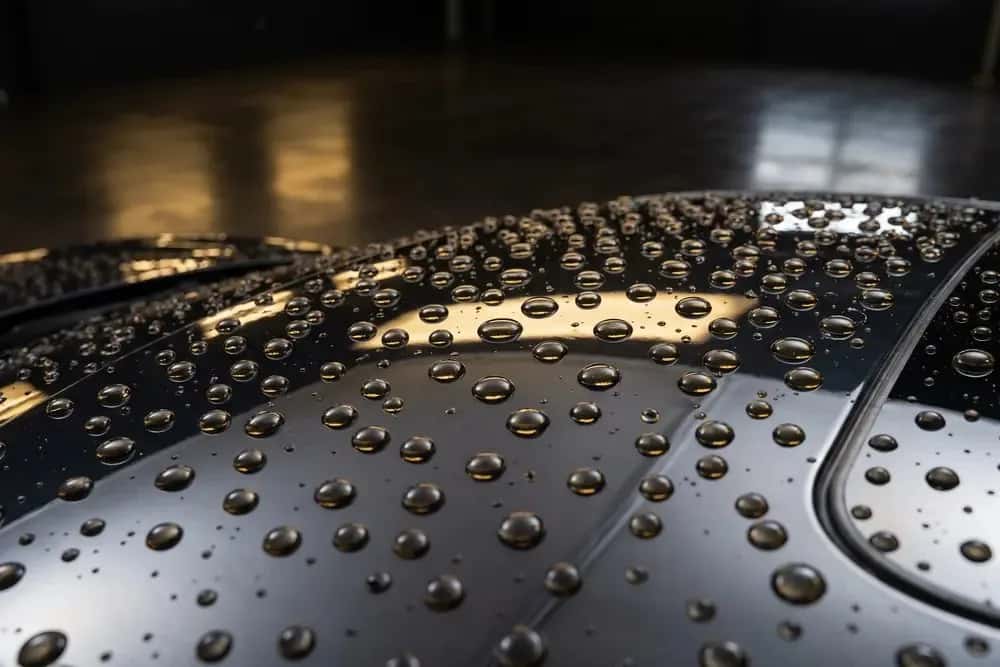

Close-up of round water beads standing on a dark glossy body panel, a pale reflection curving across it and two warm lights mirrored in the dark background.

What we can put on the label.

Every row is ticked: printed on the roll label or confirmed by ARK. Thickness and warranty are ARK’s own figures. The other rows are industry-typical values for this class of film, confirmed by ARK for publication, not ARK test results.

The other ARK films: Defender, the gloss film; Umbra (a working name), the satin film; and Spectrum, the colour film. Compare all the films side by side.

Run a shop?Apply to carry ARK

Fusion

Thickness
8.5 mil
Base material
Aliphatic TPU
Top coat
Ceramic-infused hydrophobic self-healing coat
Self-heal activation
60 °C
Water contact angle
105 °
Gloss at 60°
95 GU
Elongation at break
350%
Warranty
10 years

Warranty

Term
10 years
Transfers with the car
Yes

What a claim covers: replacement film, and the labour to take off the failed film and fit the new one.Registered online, claimed through the shop that installed it. How the ARK warranty works.

What it does, and what it doesn’t.

It does

  • Beads water and sheets it off, so road film has less to hold on to.
  • Takes chips and scuffs the way the clear films do.
  • Closes light swirls in the top coat with heat.

It doesn’t

  • Stop hail.
  • Keep its beading without maintenance. The effect fades and is restored by washing and care.
  • Replace a wash. Dirt still has to come off.

Why, for every film: how paint protection film works, layer by layer.

Asked about Fusion.

No. That is the question Fusion exists to answer: the water-repellent layer is part of the film’s top coat rather than a coating applied over it. A ceramic coating on top of ARK film keeps the ARK film warranty only when an authorized ARK dealer applies it; applied by anyone else, it voids the ARK film warranty. Ask the installing shop how to wash it.

Beading is a surface property. It fades with washing and use, and it comes back with maintenance. It does not need a separate product reapplied to exist in the first place.
A dark, empty detailing bay at night seen down its centre line: one dark saloon parked at the far end under a cool white ceiling light, whose reflection runs across the polished floor.

Get it fitted by an authorized dealer.
